Compact WCA AD-3651 (Noise & Vibration analyzer)

In-vehicle Real-Time Noise and Vibration analysis system

  • From in-vehicle order tracking to MIMO analysis
    In-vehicle Real-time Noise & Vibration Analyzer

  • Compact-True ISO A4 Size (210 x 297mm)
  • 24-bit ADC
  • Real-time Octave Analysis
  • Throughput Acquisition to Disk (standard)
  • Powered by DC, AC or Backup Battery
  • Dynamic Range 100dB
  • Multi Taco Input
  • Multi-Input Multi-Output (MIMO) Analysis (standard)
Additional Links
  • Input section
    Number of Inputs : 4, 8, 16, 32 (32 by synchronized dual front-end connection)
    Input Impedance : 1MΩ
    Input Coupling : AC, DC, ICP
    Input Range : -20dBVrms to +20dBVrms
    Trigger Source : Input Channel, External Input (Optional), SG (Optional)
  • Analysis Section
    Frame Size : 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536
    Frequency Range : 1Hz to 40kHz
    Real-time Analysis : 20kHz or higher on 16 channels(when a suitable PC is used)
    Frequency A/D Converter : 24 bits
    Dynamic Range : 100dB (Typical)
  • Analytical Functions
    Time Function, Time Averaging Function, Spectrum, Auto-Power Spectrum, Complex Spectrum, Energy Spectrum Density Function, Power Spectrum Density Function, Cross Spectrum, Phase Spectrum, Frequency Response Function (H1, H2, H3, Hv), Ordinary FRF, Coherence Function, Multiple Coherence Function, Partial Coherence Function, 1/1, 1/3, 1/6, 1/12 Octave
  • Display
    Plot Window : Max. 16 windows for simultaneous display
    Overlaying : Max. 8 traces (2D display)
    Display Scaling : Auto/fixed scale, X-axis linear/log, Y-axis linear/log/dB, Z-axis linear/log/dB
    Format : 2D display (Amplitude, Bode plot, Nyquist plot, Co-Quad plot, Orbit)
    3D display (Map, Campbell plot, Color spectrogram)
  • Block Arithmetic Functions
    +, -, *, /, Complex conjugate number, Discrete fourier transform, Fast fourier transform, Inverse discrete fourier transform, Inverse fast fourier transform, Time-domain differentiation/integration, Frequency-domain differentiation/integration, Trigonometric function, Hilbert, Inverse Hilbert, Exponent, Logarithm, Natural logarithm, Amplitude, Phase, Square root, Envelope, Averaging, Acoustic weighting, Smoothing, Interpolation, 1/1; 1/3; 1/6; 1/12 octave
  • Input section
    Number of Inputs : 4, 8, 16, 32 (32 by synchronized dual front-end connection)
    Input Impedance : 1MΩ
    Input Coupling : AC, DC, ICP
    Input Range : -20dBVrms to +20dBVrms
    Trigger Source : Input Channel, External Input (Optional), SG (Optional)
  • Data Save and Recall
    Analyzer conditions, Plot conditions, MFU files
  • Print Output
    Plot window, List display window
  • Copy and Paste
    Plot window (Enhanced metafile), Data list
  • Cursor
    2D Cursor : Single cursor (X, Y cursor, Peak fit, Damping factor, Harmonic, THD)
    Dual Cursor (Band cursor, Delta cursor, Overall, Max/min values)
    3D Cursor : X, Y cursor (Cursor cut in 2D slice possible)
  • Data Management (Function Storage)
    MFU file read-in/read-out, Plot (graphic) display, Data value list display (dB/Lin), Data value editing, Data attributes editing (channel label, coordinates, etc)
  • Order Tracking (Optional)
    Processing Constant ratio RPM tracking, Constant band RPM tracking, Order tracking analysis band width (frequency/order), Octave band tracking (1/1, 1/3, octave), Phase tracking, Cross spectrum, Transfer function, Spectrum map, Campbell plot, Color spectrogram
    Max. Analysis Order : 1600 degrees (at internal sampling)
    Analysis Order Range : 6.25, 12.5, 25, 50, 100, 200, 400 degrees
    3D Cursor : Spectrum map, Campbell plot, 2D slice from color spectrogram (order, frequency, record)
  • Real-time Octave Analysis (Optional)
    Analysis Function : 1/1, 1/3, 1/6, 1/12 octave
    Filter Method : Digital filter
    Standards : 1/1oct (ANSI S1.11, JIS C1513 Type II)
    1/3oct (ANSI S1.11, JIS C1513 Type III)
    Number of Bands : 1/1oct 16Hz to 16kHz (11 bands)
    1/3oct 12.5Hz to 20kHz (33 bands)
    1/6oct 10.6Hz to 18.8kHz (66 bands)
    1/12oct 10.3Hz to 19.4kHz (132 bands)
    Averaging : No averaging, Linear, Exponential, Peak
    Time : Weighting 0.001 to 1000 seconds
  • Signal Generator (Optional)
    Number of Outputs : 1 to 4 (3 to 4 by synchronized dual front-end connection)
    Output Impedance : 50Ω
    Signal Output : Voltage ±2.5V max.
    DA Converter : 24 bits
    Signal Frequency : 40 kHz max.
    Waveforms : Sine wave, Pure random
    Waveform Attributes : Burst control, Lump control, Sweep control
    3D Cursor : X, Y cursor (Cursor cut in 2D slice possible)
  • Dimensions / Weight
    External Dimensions : 100(H) x 297 (W) x 210 (D) mm (protrusions excluded)
    Weight : 3 to 5kg
    Power Supply : 11 to 17V DC, AC adapter, Backup Battery (Optional)
  • User-friendly GUI with greater ease of operation
    A workflow-orientated menu will help the operator reduce system setup time and boost testing productivity.
  • Complete compatibility with the WCA on PC / AD-3600 series
    A compatible user interface eliminates the need for additional training of WCA on PC / AD-3600 users. In addition, all prior analysis data remains upward compatible with Compact WCA.
  • Compact-True ISO A4 Size (210 x 297mm)

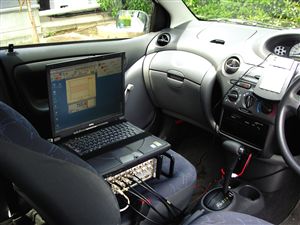

    You can use the CWCA anywhere; on-board a vehicle, in the field or in the lab, using DC or AC power both available with optional battery backup to protect data loss during power interruptions.
  • The Compact WCA system from 4, 8 to 16 channels with single front-end hardware.
    Expansion to a 32-ch, 48-ch or 64-ch configuration is possible with a synchronized connection of several 16-channel front-ends. Flexibility is provided to allow two separate mainframes with 4, 8, or 16 channels to be operated as a single 8, 16, or 32 channel system, and vice versa, by synchronizing the dual mainframes.
  • Flexible Menu Customization / Routine Automation
    COM support capability enables complete control of the Compact WCA system with external application software such as Microsoft Excel. Customized menu design and automated routine processing are possible.

  • Powerful Analysis Software
    Multi-Analysis Software WCA PRO
    WCA Pro, the base software for Compact WCA, can be used with Windows user interface. WCA Pro provides real-time FFT analysis for noise & vibration testing.

    Optional licenses for integrating real-time octave analysis and tracking analysis are available. The system comes standard with throughput acquisition, allowing continuous copying of time history data to disk and repeated playback analyses. Off-line playback analysis with a standalone PC is also possible (option).

    COM support capability enables complete control of the Compact WCA system with external application software such as Microsoft Excel.
