Model		BM-5DH
Capacity		2.1 g / 5.2 g*
Readability		0.001 mg / 0.01 mg
Repeatability (σ)		0.004 mg (for 1 g) / 0.01 mg
Minimum weight*⁴ (typ.)		5.0 mg
Linearity		±0.010 mg / ±0.02 mg
Weighing pan		Ø25 mm

* Smart range function: The readability will switch to 0.01 mg automatically when the display value exceeds 2.1 g but will return to 0.001 mg by pressing the RE-ZERO key.

A built-in fanless ionizer that allows for instant removal of destabilizing static electricity from the sample and container
Includes four 0.001 mg readability models to be selected for different purposes

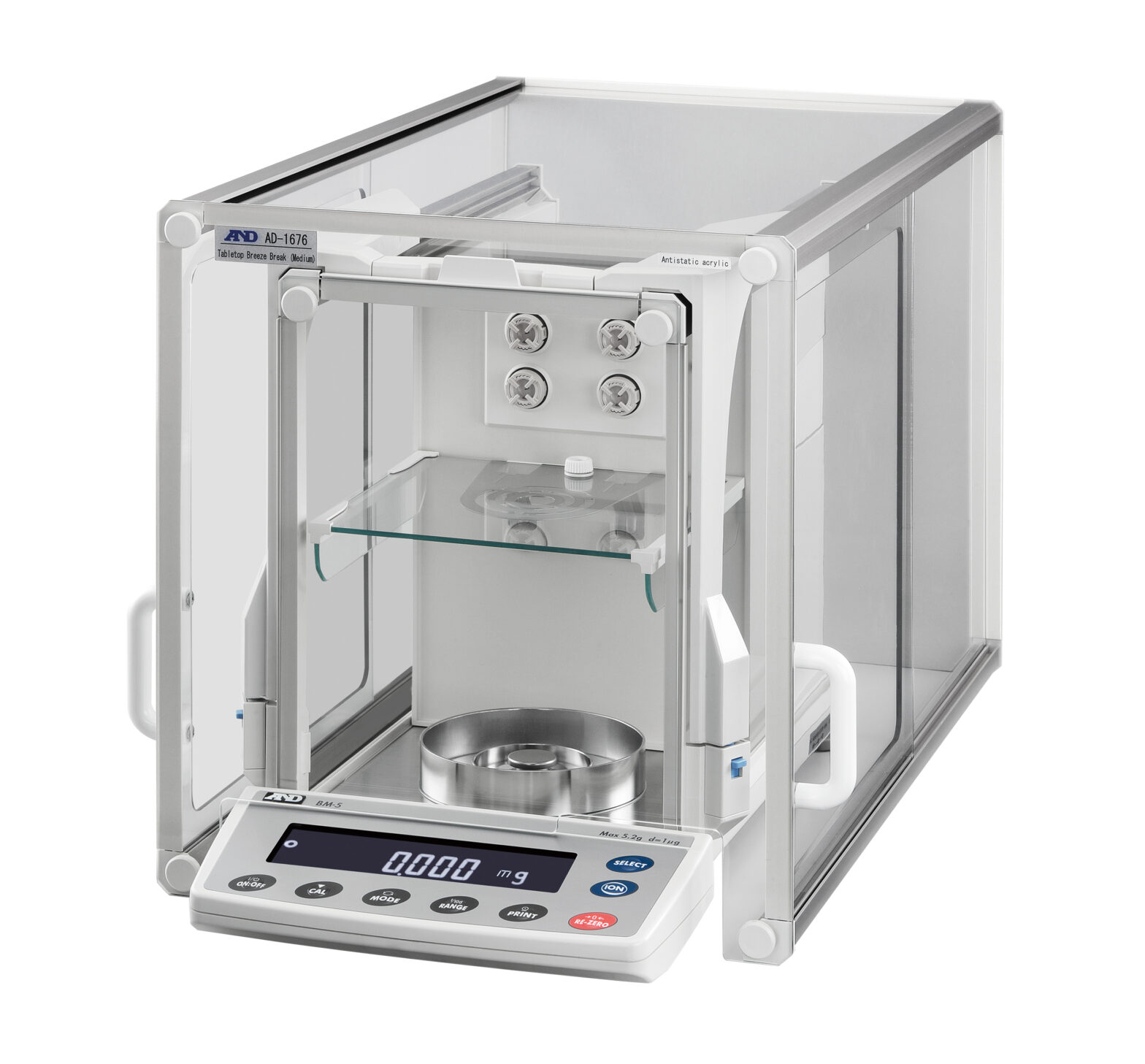

Comes equipped with the AD-1676 tabletop breeze break (medium) as standard (BM-5/5D/20/22)
Anti-static glass breeze break with a transparent evaporated metal coating
Adjustable (manual or automatic) response characteristics to help cope with the effect of drafts and vibrations
Automatic self calibration to maintain accuracy under temperature changes
Automatic repeatability test function using the internal calibration weight for simple precision checks at the location
Embedded temperature, humidity and atmospheric pressure sensors
Interlockable sliding doors that allow for efficient operation with both hands
Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, specific gravity (either tael or tola can be added upon request)
Comes standard with the handy AD-1688 weighing data logger, AD-1689 tweezers for calibration weight, and the AX-BM-033 dust cover for storage
Clearly visible, reverse-backlit LCD
GLP/GMP/GCP/ISO compliant output
Clock and calendar function
Data memory function
RS-232C and Quick USB interfaces as standard
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function
Comparator function with buzzer
Auto power on function
Underhook function
Special pans/holder (BM-5/5D/20/22)
Density determination function and an optional density determination kit (for BM-252/200/300/500 only)
Optional pipette accuracy testing kit
Windows Communication Tools software (WinCT)
Expert assessment of the set-up environment using AND-MEET*¹ (please inquire at your local distributor for details)
*1 Patent pending

RS-232C interface
Quick USB interface
Ethernet interface with WinCT-Plus software (optional)

AD-1653 : Density determination Kit (for BM-252/200/300/500 only)
AD-1671 : Anti-vibration table for balances
AD-1672 / AD-1672A : Tabletop breeze break (large)
AD-1676 : Tabletop breeze break (medium) Manual (PDF 302 KB)
AD-1682 : Rechargeable battery unit
AD-1683 : Static eliminator
AD-1684A : Electrostatic field meter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger*²
AD-1689 : Tweezers for calibration weight*²
AD-8127 : Compact printer
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AD-8527 : Quick USB adapter
AD-8529PC-W : Bluetooth^® converter for PC
AD-8529PR-W : Bluetooth^® converter for printer
AD-8920A : Remote display
AD-8922A : Remote controller
AX-BM-031 : Display covers (5 pcs)
AX-BM-032 : Microtube holder for BM-5/5D/20/22
AX-BM-033 : Dust cover for storage*²
AX-BM-034 : Microtube holder for BM-252/200/300/500
AX-BM-035 : Slide breeze break (for BM-20/22 only)
AX-BM-NEEDLESET : Discharge electrode units for the ionizer (a set of 4 pcs)
AX-HOLDER-SET : Sample cup holder set
AX-KO2466-200 : RS-232C cable (9P-9P)
AX-ROUND-PAN-L : Round aluminum analytical pans (∅15 mm, 0.8 ml, 100 pcs)
AX-ROUND-PAN-M : Round aluminum analytical pans (∅12 mm, 0.3 ml, 100 pcs)
AX-ROUND-PAN-S : Round aluminum analytical pans (∅8 mm, 0.05 ml, 100 pcs)
AX-SW137-PRINT : Foot switch for print (with connector)
AX-SW137-REZERO : Foot switch for re-zero (with connector)
AX-USB-9P : RS-232C/USB converter with cable

*2 Provided as standard, but also available as an accessory

Holder for microfuge tubes

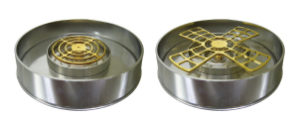

Pans for weighing PM filters

Aluminum analytical pans

AD-1676

AD-1671
