AD-5326TT
Digital temperature data logger AD-5326TT / AD-5326T
Records temperature data, connects to a PC and saves the recorded data in a file
Record temperature data (*1) at a maximum of 525,600 in the internal memory of the temperature data logger
- The AD-5326TT can record two channels of temperature data: the temperature data logger's built-in temperature sensor and an external temperature sensor.
- The AD-5326T can record temperature data from one channel of the built-in temperature sensor of the temperature data logger. By connecting an external temperature sensor (sold separately), you can record temperature data from two channels: the internal temperature sensor and the external temperature sensor.
(*1) The number of recorded data depends on the battery life of about one year.
525,600 data are recorded in the internal memory when recording for 1 year with a recording interval of 1 minute
Additional Links
| type name | standard price | Product code | JAN code | remarks |
|---|---|---|---|---|
| AD-5326TT | ¥5,500 (excluding tax) | AD5326TT | 4981046451116 | with external temperature sensor |
| AD-5326T | ¥4,500 (excluding tax) | AD5326T | 4981046451109 | - |

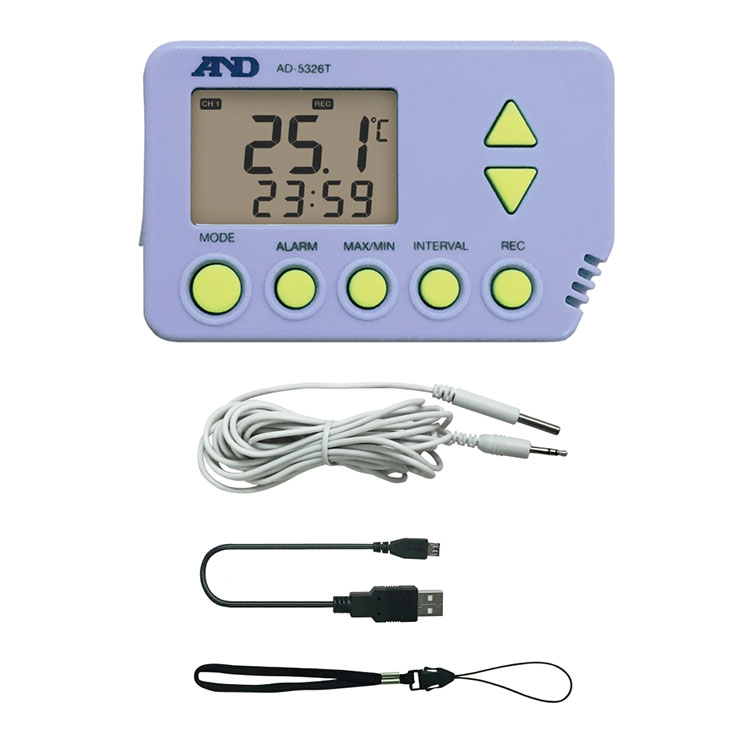

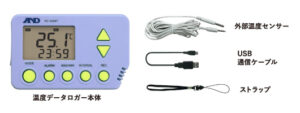

AD-5326TT: Comes with an external temperature sensor
The temperature data logger can record two channels of temperature data with the built-in temperature sensor and the external temperature sensor.

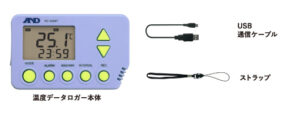

AD-5326T: Temperature data can be recorded from one channel of the built-in temperature sensor of the temperature data logger.
By connecting an optional external temperature sensor (model: AX-KO5366), you can record temperature data from two channels: the internal temperature sensor and the external temperature sensor.
Record up to 525,600 temperature data in the temperature data logger's internal memory
The number of recorded data depends on the battery life of about 1 year. 525,600 data are recorded in the internal memory of the thermometer when recording for 1 year with a recording interval of 1 minute
Connect the USB communication cable to the main unit and the computer
Recorded temperature data can be saved on a PC (saved file is in CSV format, TXT format for some browsers)
Data recording interval can be set from 1 minute (00:01) to 12 hours (12:00) in 1 minute increments
By connecting an external temperature sensor, it is possible to record the temperature of two channels, the built-in temperature sensor and the external temperature sensor.The
AD-5326TT comes with an external temperature sensor. Connect the optional external temperature sensor (model: AX-KO5366) to the AD-5326T.
ID number setting of temperature data logger is possible
Identification is possible even if multiple units are used
Temperature upper/lower limit alarm setting possible
Alarm display on temperature data logger
Drip-proof IP54 equivalent
When the external temperature sensor and USB communication cable are not connected
CH1 represents the temperature of the data logger's built-in temperature sensor, CH2 represents the temperature of the external temperature sensor

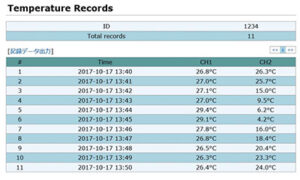

Display example of recorded data - When displayed using Internet Explorer on a PC

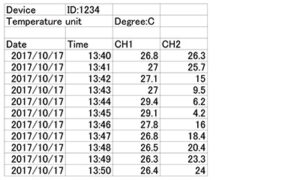

Display example when recording data is saved in a file ~CSV file
Operation confirmed browser
Internet Explorer, Microsoft Edge, Google Chrome, Firefox, Opera, Vivaldi
Q: When I connect to my computer during data recording, data recording stops.
Answer:
If you connect to a computer during data recording, data recording will stop. Please note that removing it from the computer will not resume data recording.
To start recording again, it is necessary to clear the recorded data, so be sure to save the recorded data.
Temperature control of refrigerators and freezers in HACCP
Created based on the concept of HACCP of the Ministry of Health, Labor and Welfare, "Mass Cooking Facility Hygiene Management Manual…
How to store food after cooking under HACCP
AD-5326TT
- Display item
- Temperature CH1 (built-in temperature sensor), temperature CH2 (external temperature sensor), time
- Measurement item
- Temperature CH1 (built-in temperature sensor), temperature CH2 (external temperature sensor)
- Measurement range, display range, measurement accuracy: Temperature CH1 (built-in sensor)
- Measurement range 0.0 to 60.0°C / display range -20.0 to 70.0°C (resolution 0.1°C) / measurement accuracy ±1.0°C (0.0 to 39.9°C), ±2.0°C (other measurement ranges)
- Measurement range, display range, measurement accuracy: temperature CH2 (external temperature sensor)
- Measurement range -40.0 to 90.0°C / Display range -50.0 to 99.9°C (resolution 0.1°C)
Measurement accuracy ±1.0°C (0.0 to 39.9°C), ±2.0°C (-20.0 to -0.1°C, 40.0 to 69.9°C), ± 3.0°C (-40.0 to -20.1°C, 70.0 to 90.0°C)
*AD5326T does not come with an external temperature sensor.
- temperature sensor
- thermistor
- Sampling interval (measurement interval)
- about every 30 seconds
- Upper/lower limit alarm setting range
- Temperature CH1: -10.0 to 60.0°C (can be set in 0.1°C increments), Temperature CH2: -40.0 to 90.0°C (can be set in 0.1°C increments)
*AD5326T does not come with an external temperature sensor
- Data log function: Number of recorded data
- Maximum 525,600 data (depending on battery life of about 1 year, 525,600 data when recording for 1 year with recording interval of 1 minute)
- Data log function: recording interval
- 1 minute (00:01) to 12 hours (12:00), can be set in 1-minute intervals (initial setting: 10 minutes)
- Data log function: Output format
- CSV format (TXT format for some browsers)
Operation has been confirmed for the following browsers: Internet Explorer, Microsoft Edge, Google Chrome, Firefox, Opera, Vivaldi
- Data log function: data ID
- 0000 to 9999 (initial setting 0001)
- Data output interface
- USB2.0 and USB3.0
- Maximum/minimum memory
- Memory possible only during data recording
- Waterproof performance
- IP54 (external temperature sensor, when USB communication cable is not connected)
- Battery/battery life
- CR2032 type lithium battery x 2 / Approx. 1 year (no alarm operation, recording interval 1 minute, ambient temperature 25°C)
- System operating environment
- Temperature 0.0 to 60.0°C, Humidity 90% RH or less (no condensation)
- Dimensions/mass
- 69(W) x 45(H) x 19(D)mm, about 45g (including batteries)
- accessories
- External temperature sensor AX-KO5366 (for CH2), battery (for monitor), USB communication cable, strap, instruction manual
AD-5326T
- Display item
- Temperature CH1 (built-in temperature sensor), temperature CH2 (external temperature sensor), time
* Temperature CH2 is when the optional external temperature sensor AX-KO5366 is connected
- Measurement item
- Temperature CH1 (built-in temperature sensor), temperature CH2 (external temperature sensor)
* Temperature CH2 is when the optional external temperature sensor AX-KO5366 is connected.
- Measurement range, display range, measurement accuracy: Temperature CH1 (built-in sensor)
- Measurement range 0.0 to 60.0°C / display range -20.0 to 70.0°C (resolution 0.1°C) / measurement accuracy ±1.0°C (0.0 to 39.9°C), ±2.0°C (other measurement ranges)
- Measurement range, display range, measurement accuracy: temperature CH2 (external temperature sensor)
- Measurement range -40.0 to 90.0°C / Display range -50.0 to 99.9°C (resolution 0.1°C)
Measurement accuracy ±1.0°C (0.0 to 39.9°C), ±2.0°C (-20.0 to -0.1°C, 40.0 to 69.9°C), ± 3.0°C (-40.0 to -20.1°C, 70.0 to 90.0°C)
*AD5326T does not come with an external temperature sensor.
- temperature sensor
- thermistor
- Sampling interval (measurement interval)
- about every 30 seconds
- Upper/lower limit alarm setting range
- Temperature CH1: -10.0 to 60.0°C (can be set in 0.1°C increments), Temperature CH2: -40.0 to 90.0°C (can be set in 0.1°C increments)
*AD5326T does not come with an external temperature sensor
- Data log function: Number of recorded data
- Maximum 525,600 data (depending on battery life of about 1 year, 525,600 data when recording for 1 year with recording interval of 1 minute)
- Data log function: recording interval
- 1 minute (00:01) to 12 hours (12:00), can be set in 1-minute intervals (initial setting: 10 minutes)
- Data log function: Output format
- CSV format (TXT format for some browsers)
Operation has been confirmed for the following browsers: Internet Explorer, Microsoft Edge, Google Chrome, Firefox, Opera, Vivaldi
- Data log function: data ID
- 0000 to 9999 (initial setting 0001)
- Data output interface
- USB2.0 and USB3.0
- Maximum/minimum memory
- Memory possible only during data recording
- Waterproof performance
- IP54 (external temperature sensor, when USB communication cable is not connected)
- Battery/battery life
- CR2032 type lithium battery x 2 / Approx. 1 year (no alarm operation, recording interval 1 minute, ambient temperature 25°C)
- System operating environment
- Temperature 0.0 to 60.0°C, Humidity 95% RH or less (no condensation)
- Dimensions/mass
- 69(W) x 45(H) x 19(D)mm, about 45g (including batteries)
- accessories
- Battery (for monitor), USB communication cable, strap, instruction manual
*External temperature sensor AX-KO5366 (for CH2) is not included.
