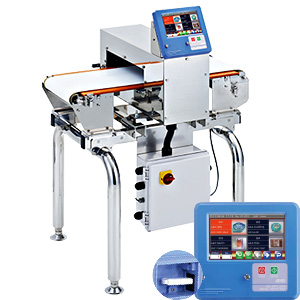

AD-4971 Metal Detection System

Metal Detectors

  • Capable of detecting metal contaminants in products, this system contributes to the delivery of safe products to customers.
Additional Links
  • Model AD4971
    - 3510    		 AD4971
    - 3517    		 AD4971
    - 3525    		 AD4971
    - 4517    		 AD4971
    - 4525
    Aperture size Width 350mm 450mm
    Height 100mm 170mm 250mm 170mm 250mm
    Pass height 80mm 150mm 230mm 150mm 230mm
    Conveyor belt width 250mm 350mm
    Conveyor length 800mm
    Conveyor belt speed 10-60m/min
    Detection Sensitivity *1 Fe φ0.3mm φ0.5mm φ0.7mm φ0.5mm φ0.7mm
    SUS φ0.8mm φ1.0mm φ1.5mm φ1.0mm φ1.5mm
    Dust / water resistance specifications IP65 compliant
    Features Touch Panel ✔
    2D graph display ✔
    Menu with graphic display ✔
    Audio guidance for operation ✔
    Supports Modbus ✔
    FTP server function ✔
    History can be recorded in USB memory ✔
    Accessibility to I/O box ✔
    Maintenance Gear drive system
    PLC interface (standard feature) Modbus RTU/Modbus TCP, FTP server function (LAN),
    Relay output/Universal input
    External input Non-voltage contact input 4 points
    External output Relay output 8 points
    Power supply *2 Single phase AC100V-240V (+10% / -15%), 50/60Hz 100VA

    Modbus is a registered trademark of AEG Schneider Automation International
    *1 Detection sensitivity will change depending on product and environmental conditions.
    *2 Please prepare a Φ6-10mm power cable.

  • Protected from dust and water to IP65 standards.Hygienic design with the entire system washable.
  • Suitable for use in HACCP program.
  • Automatic sensitivity setting function.
  • Easy operation with 7 inch color touch panel.
  • Variable belt speed of 10-60m/min.
  • Standard Ethernet I/O allowing easy networking via LAN.
  • Inspection history function with the ability to record 100 inspection results in the internal memory. Capacity can be increased by using USB memory.
  • Cleaning and maintenance is simple with a detachable conveyor belt.
  • Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.

  • Normal display



  • Lissajous display



  • Bar graph display
